Mandelli Spark 1600 CNC Horizontal Machining Center

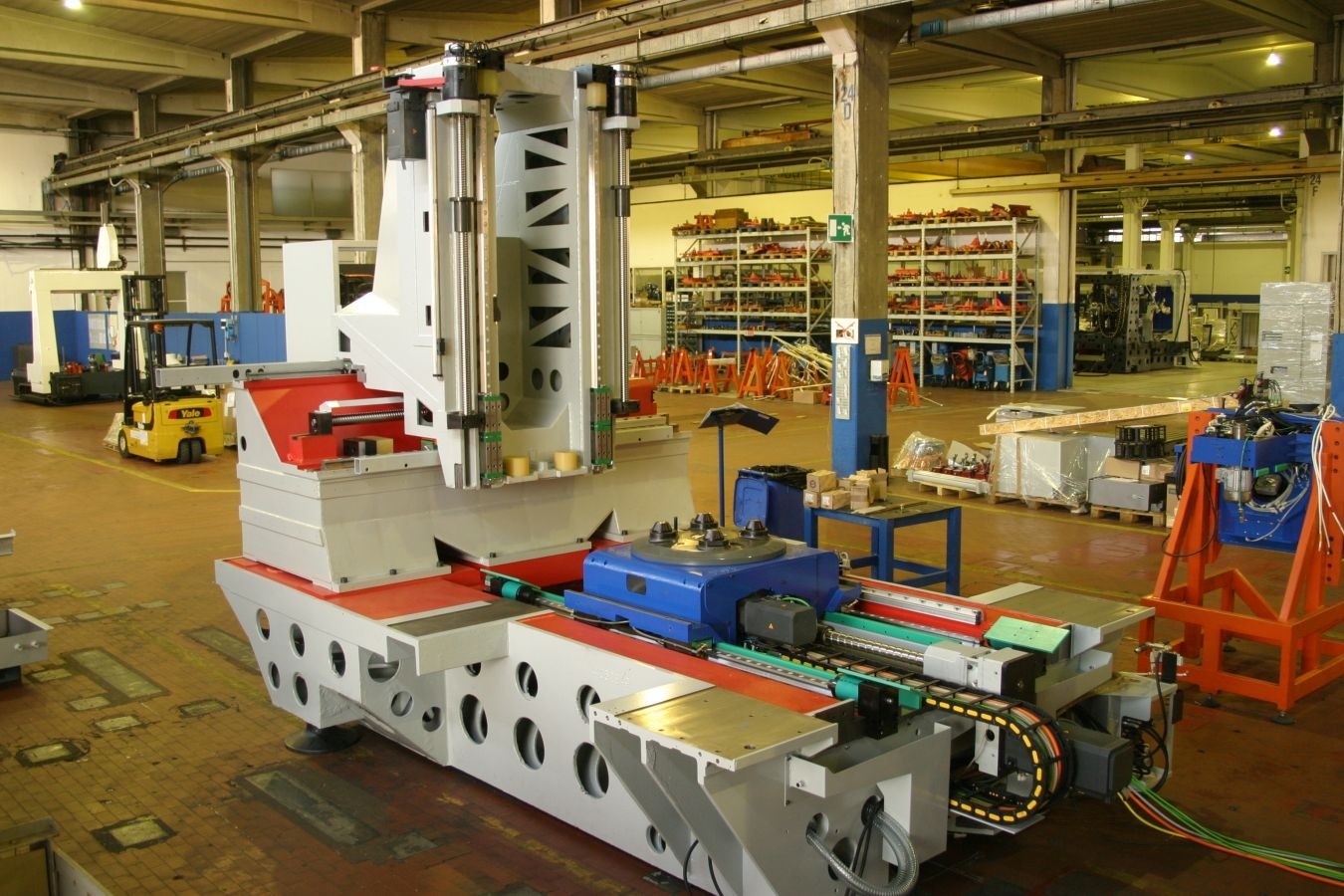

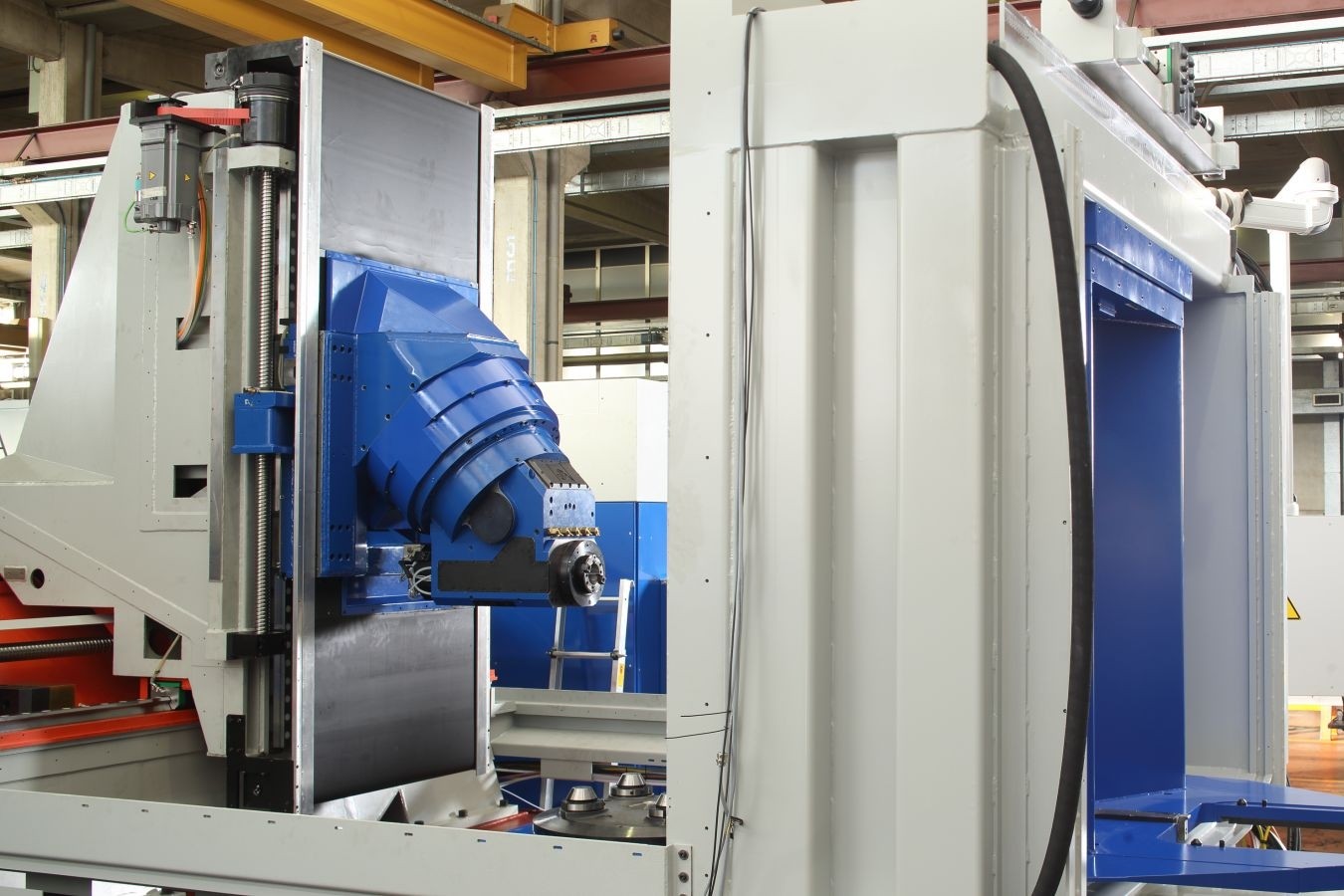

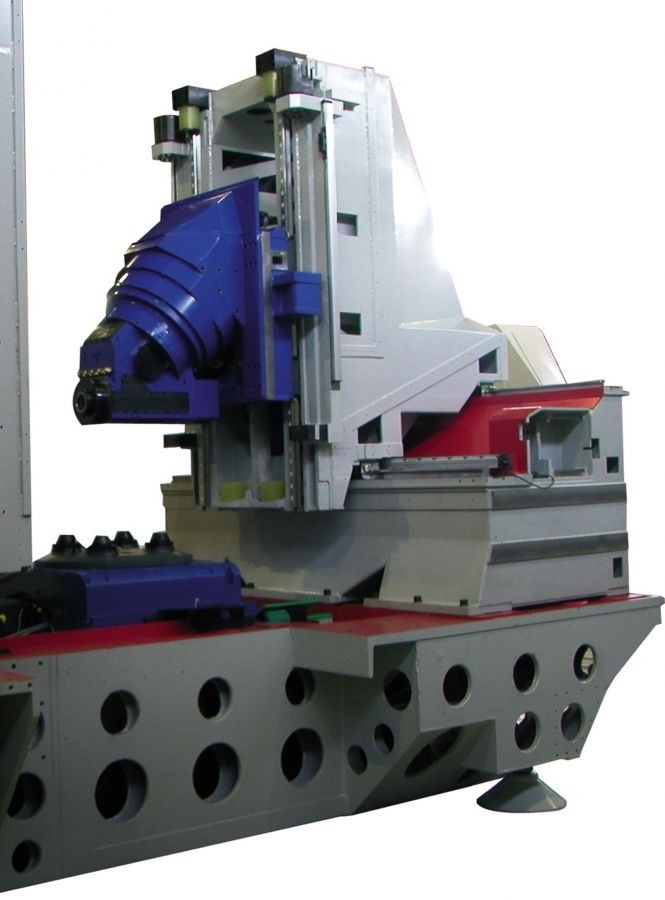

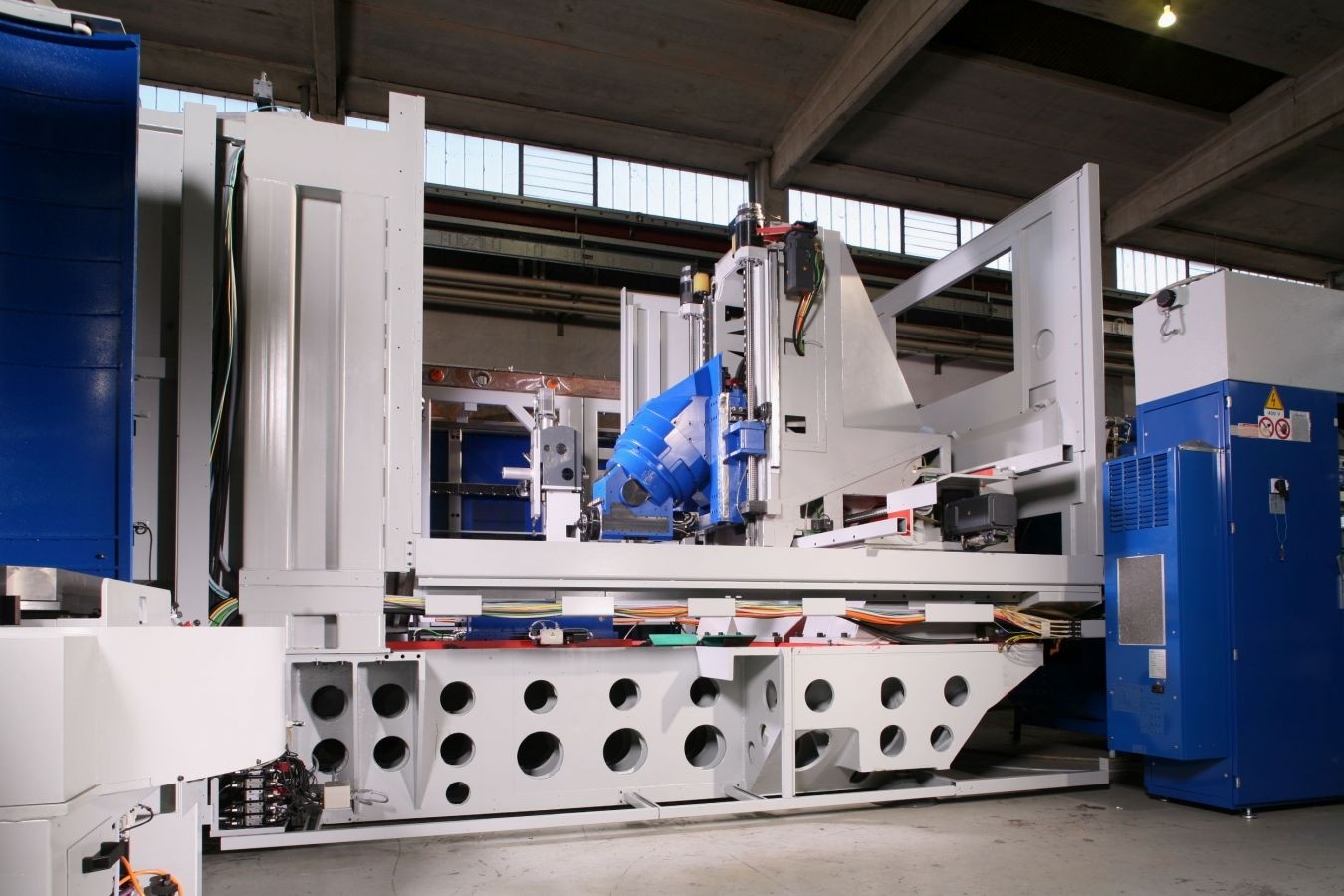

The Spark 1600 was the first new generation model to be developed in a travelling column configuration. It was conceived for the machining of average-sized workpieces with a maximum swing of 1600 mm and guarantees excellent performances in terms of dynamics and stock removal on cast iron and steel components. It is also a good starting point for 5-axis machining on tough material.

Options Avaliable

Measuring Probe
The 3D measuring probe available on our HMCs is very compact and can be employed in the hardest working conditions. It is automatically loaded by the tool magazine where it is housed and its efficient radio transmission system guarantees the work-piece geometrical data to be transmitted fast to the NC.

Laser Tool Presetting

The control unit is firmly fixed onto the table and it moves horizontally with it. The sliding covers fully protect the sensor since their shape prevents the chips from accumulating during machining operations. All the HMC movements are controlled by the NC.

Facing Head System

It is our application concerning the 5th axis facing head. On the top side of the head it is also available an NC-controlled motorization transferring the movement to the sliding bars. The motorized heads are automatically loaded from the tool magazine.

TOOL INTEGRITY CONTROL

It is a direct contact tool integrity sensor mounted on the rack tool magazine which allows tools to be controlled in concealed time.

AIR FILTER EXTRACTORS

It is the aspiration system extracting the fumes generated by the pressurized coolant. The aspiration occurs inside the HMC box and it is extremely important to protect the working area but mainly the operator's health.

Call us today for more information.
