Overview
- Make
- MANDELLI
- Condition
- New
- Stock #
- Rumble 4000
Spec Sheet

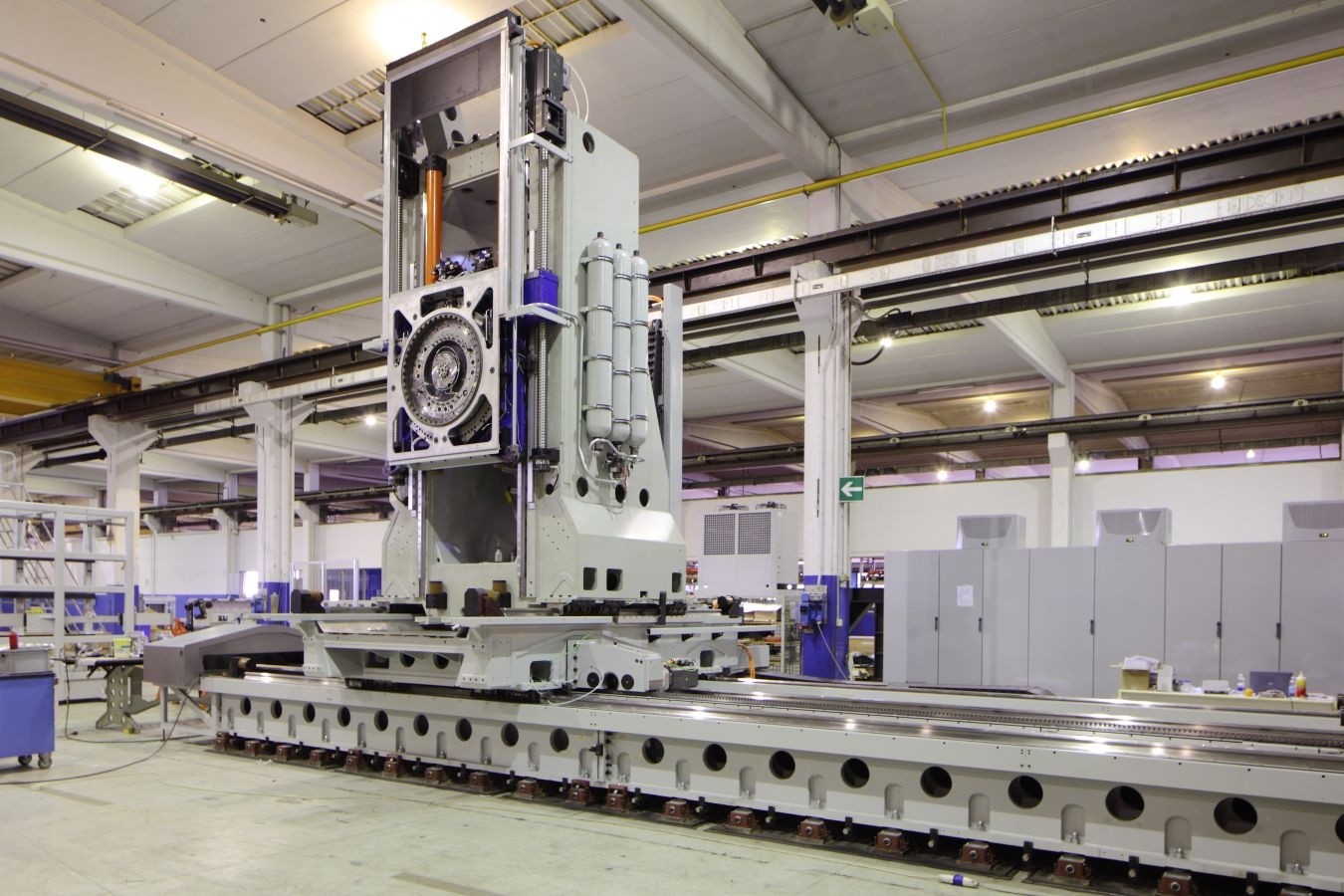

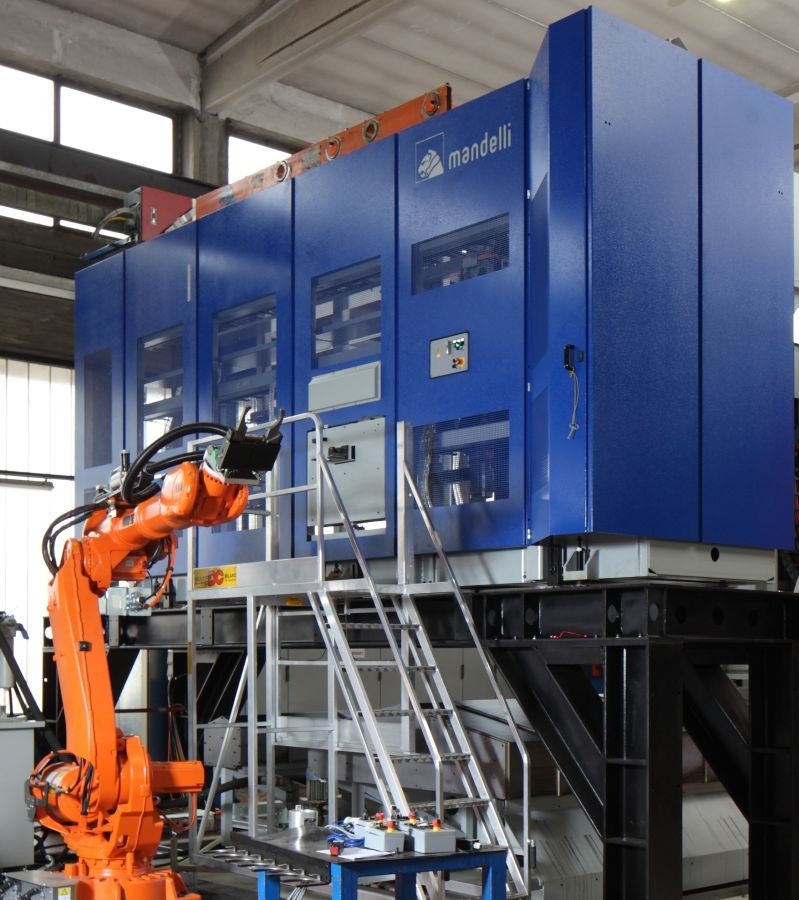

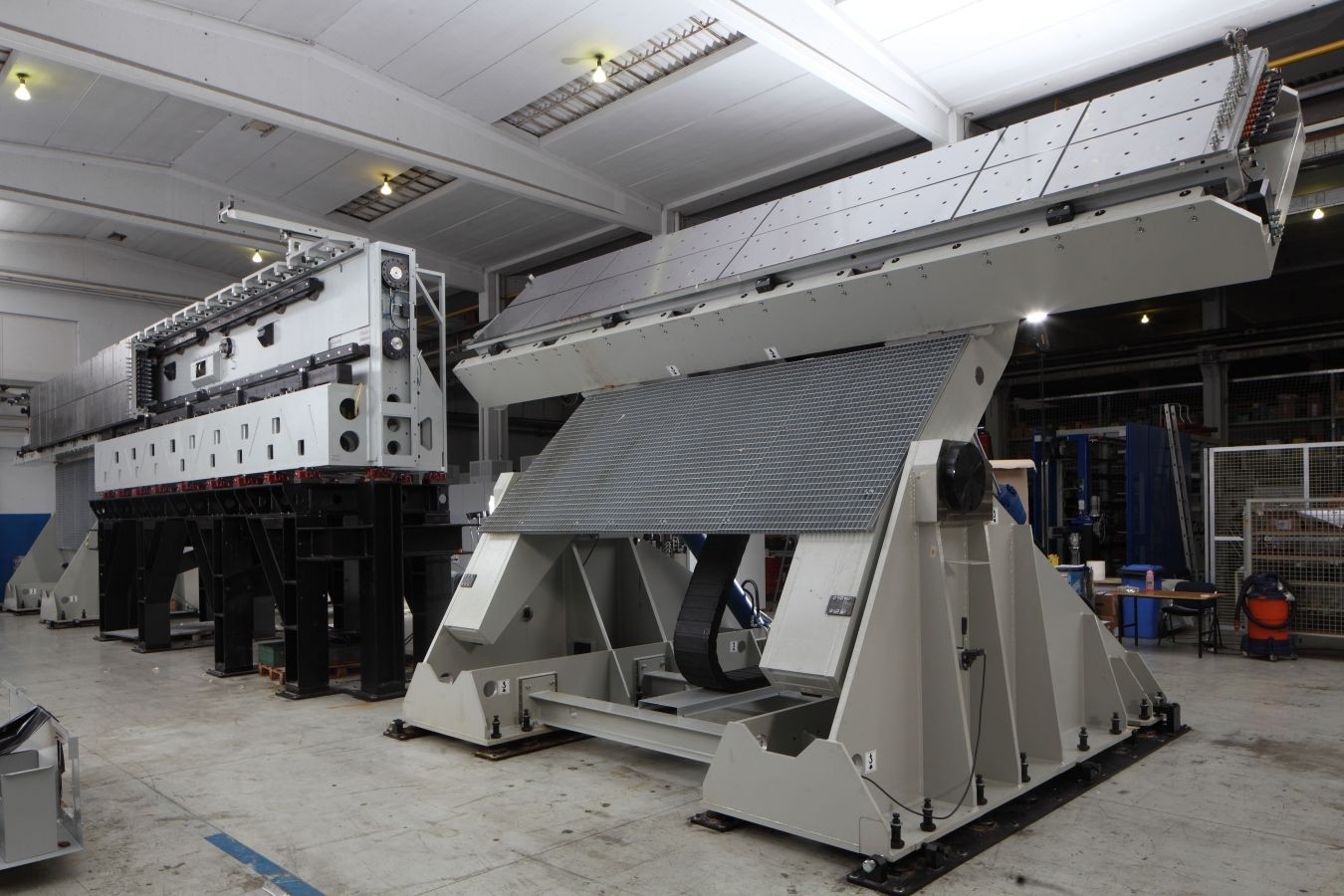

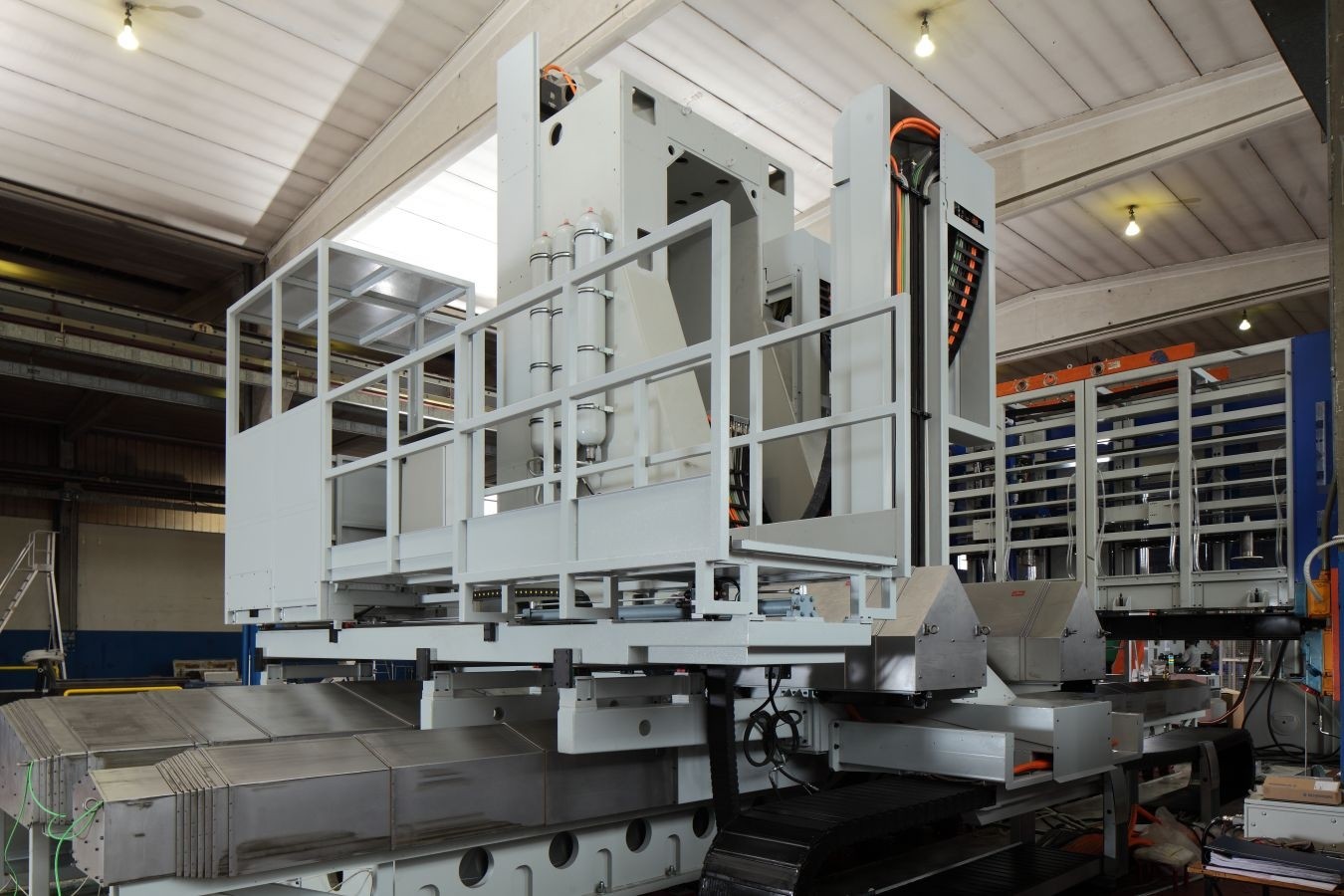

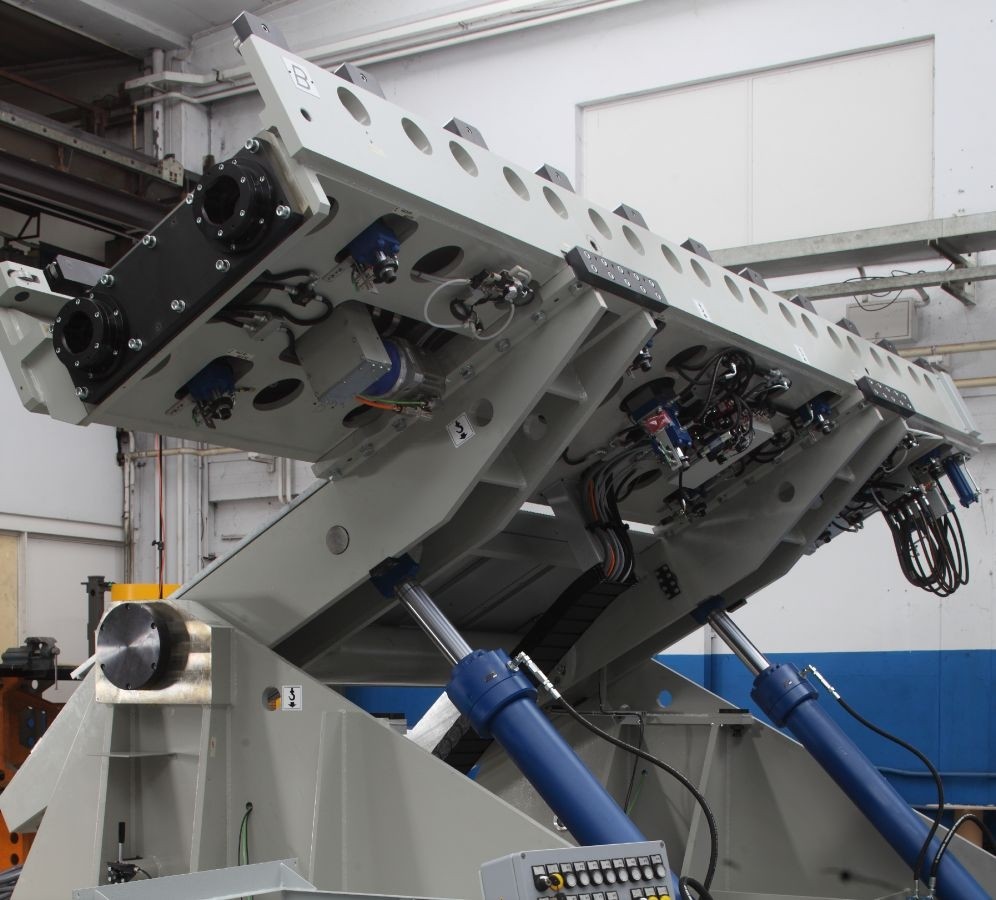

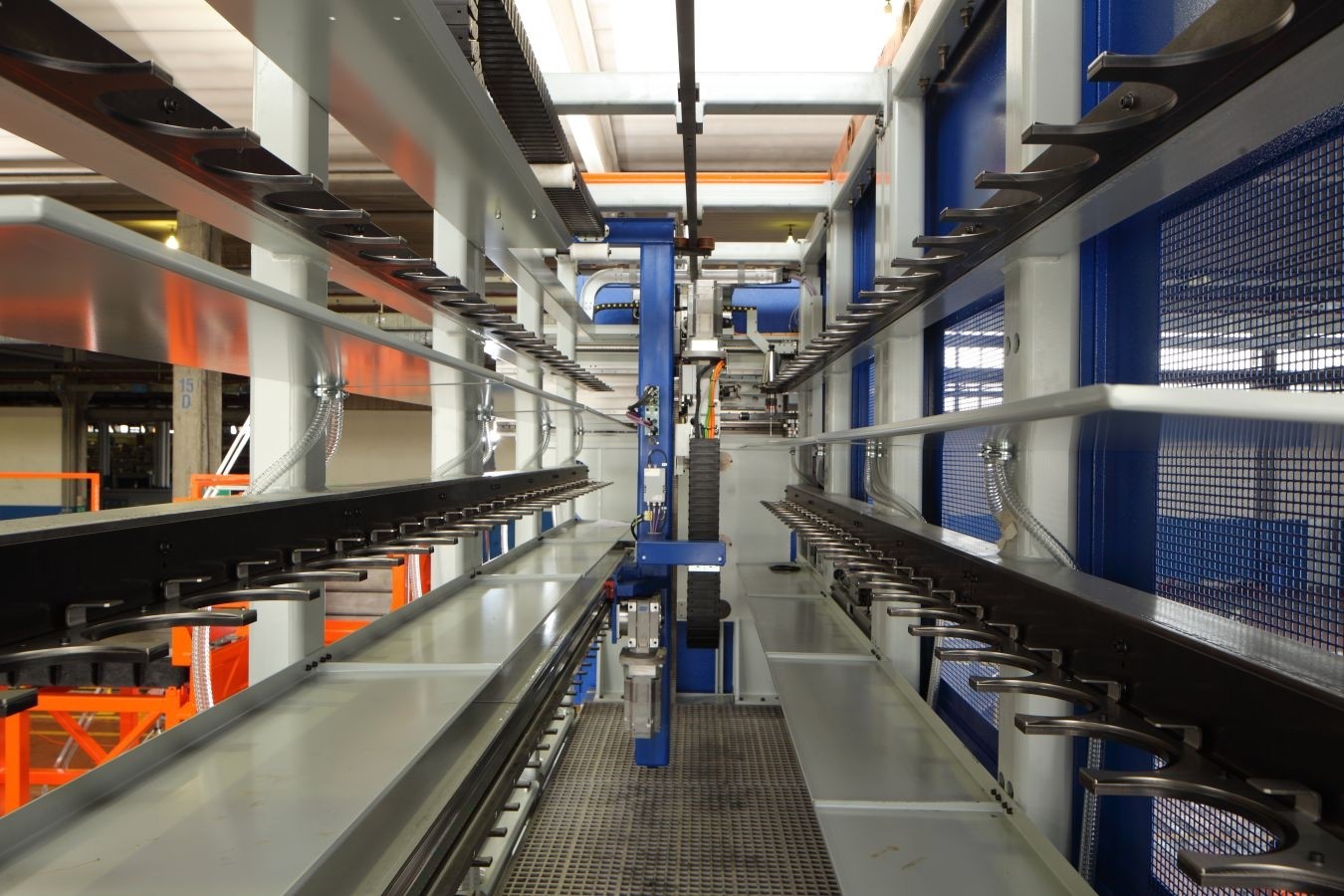

The Rumble 4000 is a horizontal machining center specifically designed to maximize the stock removal on the special structures used in the aerospace field having 1000 x 4000 mm max overall dimensions and up to 5500 kg. in weight.
| Specifications | Unit | Rumble 4000 |
| X axis travel | mm (inch) | 4000 (1575) |
| Y axis travel - Optional* | mm (inch) | 2000-3000* (787-1181*) |
| Z axis travel | mm (inch) | 1250 (492) |
| Accuracy | mm (inch) | 0008 (00003) |
| Repeatability | mm (inch) | 0003 (000011) |
| Rapid Feedrate | mm/min (ipm) | 40000 (1575) |
| Max Load on Pallet Table | kg (Lb) | 5500 (12125) |
| Continuous Torque (S1 - 100%) | Nm (Lbf ft) | 1200 (885) |
| Spindle Taper | HSK 125 | |
| N° Tools | 100-200-300 |
Options available:
MEASURING PROBE
The 3D measuring probe available on our HMCs is very compact and can be employed in the hardest working conditions. It is automatically loaded by the tool magazine where it is housed and its efficient radio transmission system guarantees the work-piece geometrical data to be transmitted fast to the NC.
TOOL INTEGRITY CONTROL
It is a direct contact tool integrity sensor mounted on the rack tool magazine which allows tools to be controlled in concealed time.
AIR FILTER EXTRACTORS
It is the aspiration system extracting the fumes generated by the pressurized coolant. The aspiration occurs inside the HMC box and it is extremely important to protect the working area but mainly the operator's health.
Call us today for more information.
