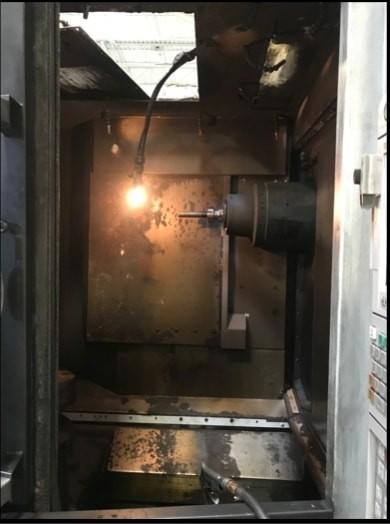

Mori Seiki Model NHX 4000 CNC Horizontal Machining Center, New 2011
Brand
MORI SEIKI
Model
NHX 4000
Type
Machining Centers, Horizontal
Stock #
52945
Condition
Not specified
Year
2011
Brand
MORI SEIKI
Model
NHX 4000
Type
Machining Centers, Horizontal
Stock #
52945
Condition
Not specified
Year
2011

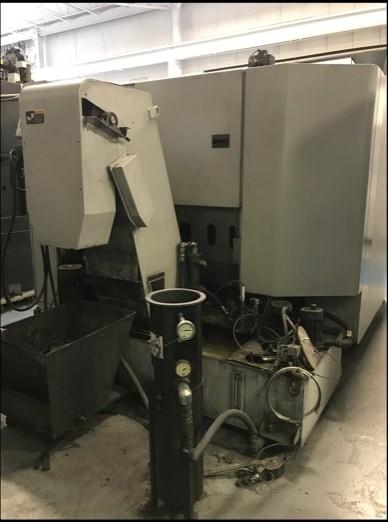

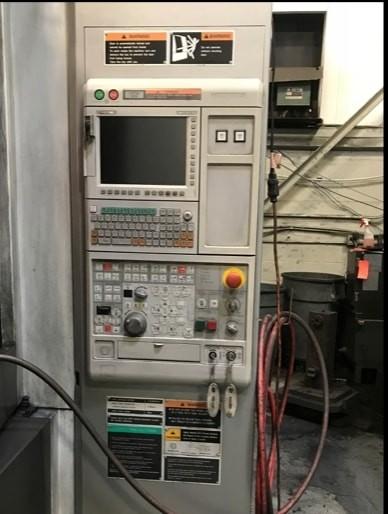

| (1) Used Mori Seiki Model NHX 4000 CNC Horizontal Machining Center, New 2011 Specifications: Pallet Size / Number of Pallets: 15.7" x 15.7" / 2 pallets Table Indexing: . 001 Degree Rotary Table Load Capacity: 880 lbs. Pallet Index Time: 1.49 seconds X-Axis Travel: 22" Y-Axis Travel: 22" Z-Axis Travel: 26" Spindle Nose: CAT # 40 Spindle Speed: 12,000 RPM Spindle Speed Ranges: 1 Range Spindle Motor: 40 HP Maximum Part Size (D x H): 24.8" x 35.4" Tool Magazine Capacity: 60 Position ATC Maximum Tool Length/Weight: 15.7" / 17.6 lbs. Rapid Traverse Rates: 2362 IPM Machine Dimensions: 107.1" x 165.9" x 108" Machine Weight: 18,000 lbs. Features: Control:MSX-853W Control Model Number: NHX40KF0143 Rear discharge conveyor Broken Tool Detection Approximately 5000 hours run time. Specifications are preliminary and subject to buyer verification. |
