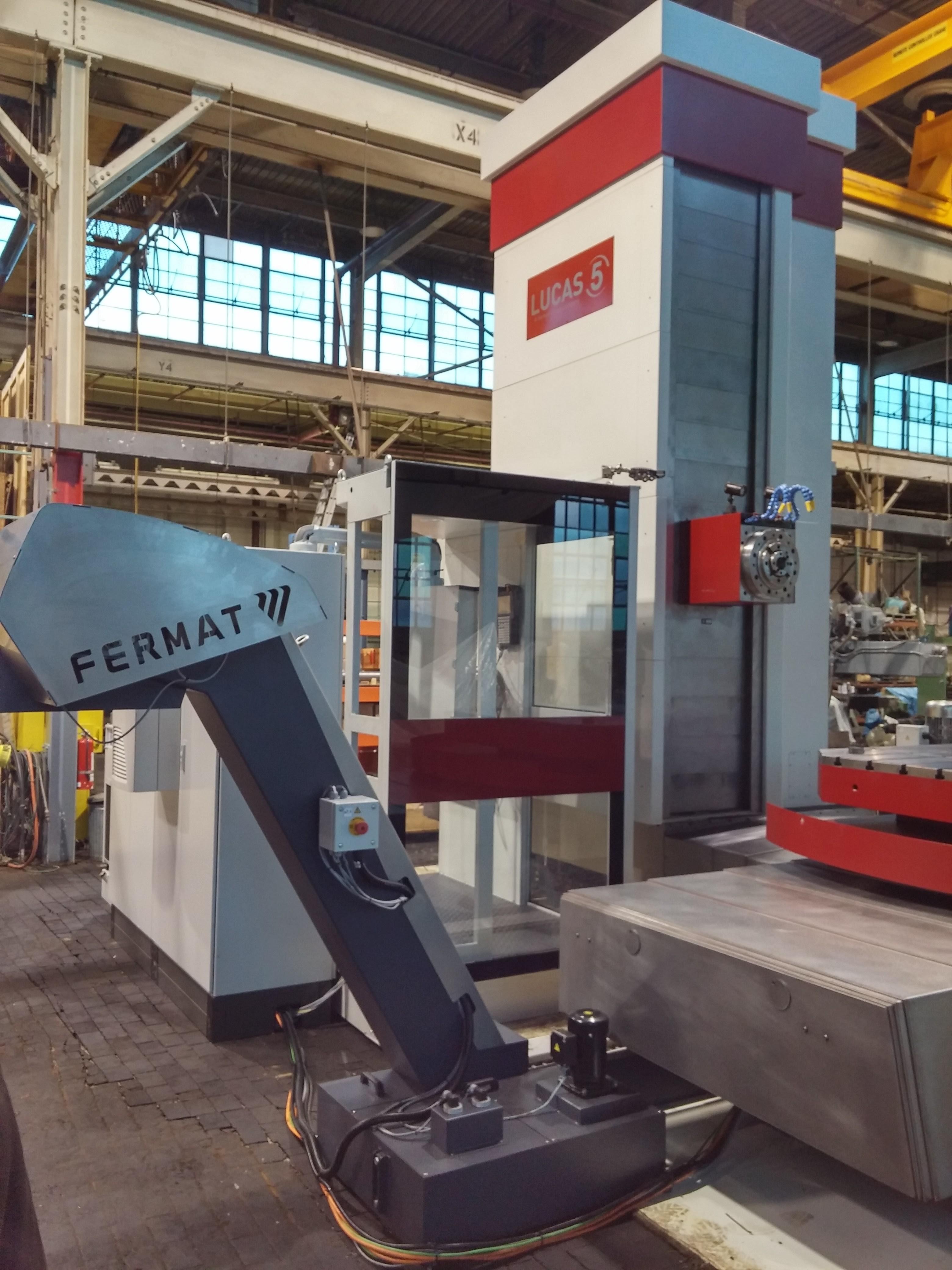

(New) Lucas Model 5 CNC Table Type Horizontal Boring Mill
Brand
LUCAS
Model
05 X 10
Type
Boring Mills, Horizontal, Table Type
Stock #
52631
Condition
Not specified
Year
2016
Brand
LUCAS
Model
05 X 10
Type
Boring Mills, Horizontal, Table Type
Stock #
52631
Condition
Not specified
Year
2016
| New Lucas Model 5 CNC Table Type Horizontal Boring Mill, New 2016 **Price was $550,000.00...Reduced to move ** Specifications: Spindle Diameter 5.12” (130mm) Spindle Taper SK50 Tool Standard ISO7388-AD (DIN 69871/2), BT(MAS 403 - 1982 BT/PT45), CAT (ANSI/ASME B5.50-78) Maximum Spindle Speed 3,000 rpm Max. Spindel Torque(S1 Cont./ S6-40%) 2001/2942 Lbf-ft. Spindle Motor Power 40.23 HP/ 30kW Dimensions of the Spindle Box 15.74” (400mm) x 15.74” (400mm) Tool Taper of Boring Spindle CAT 50 Working Range of Axes: Table Travel (X-Axis) 118.1” Headstock Travel (Y-Axis) 98.4” Column Travel (Z-Axis) 59” Spindle Travel (W-Axis) 28.7” Fanuc Spindle Motor Power 40HP Distance between guideways (B) 47.24” (1200mm) Width of cross bed guideways (A) 2x 11.81” (2x 300mm) Distance between column guideways 47.24” (1200mm) Width of front column guideway 7.08” (180mm) Width of rear column guideway 5.12” (130mm) Rapid Feed X-Axis, Y-Axis, Z-Axis 314.96 in/min (8000mm/min) Rapid Feed W-Axis 393.7 in/min (10000 mm/min) Max. Axial Force X-Axis, Y-Axis 5,620 lbf/ 25 kN Max. Axial Force Z-Axis, W-Axis 7,868 lbf/ 35 kN Ball Screws: X-Axis Ball Screw Diameter 3.14” (80 mm) Y-Axis Ball Screw Diameter 3.14” (80 mm) Z-Axis Ball Screw Diameter 3.14” (80 mm) W-Axis Ball Screw Diameter 2.48” (63 mm) Table top size: 70.86” (1800mm) x 86.61” (2200mm) Table maximum speed load 30,000lb (13.6 tons) Number of T-slots 11 Size of T-slots 28H8 (center T slot), 28H12 (others) Distance between T-slots 6.29” (160mm) Spindle reach beyond center with 1800 mm table depth facing spindle 5.55” (141 mm) Features: Controls: Fanuc 32i Handwheel (MPG), Seperate Control Panel with 15” LCD Screen Chip Conveyor - Belt Type Coolant Through the Spindle - 1,015 PSI Linear Scales - X,Y,Z Operators Platform Spindle Support Sleeve CNC Rotary Table Weight: Approximately 88,890 lbs |
