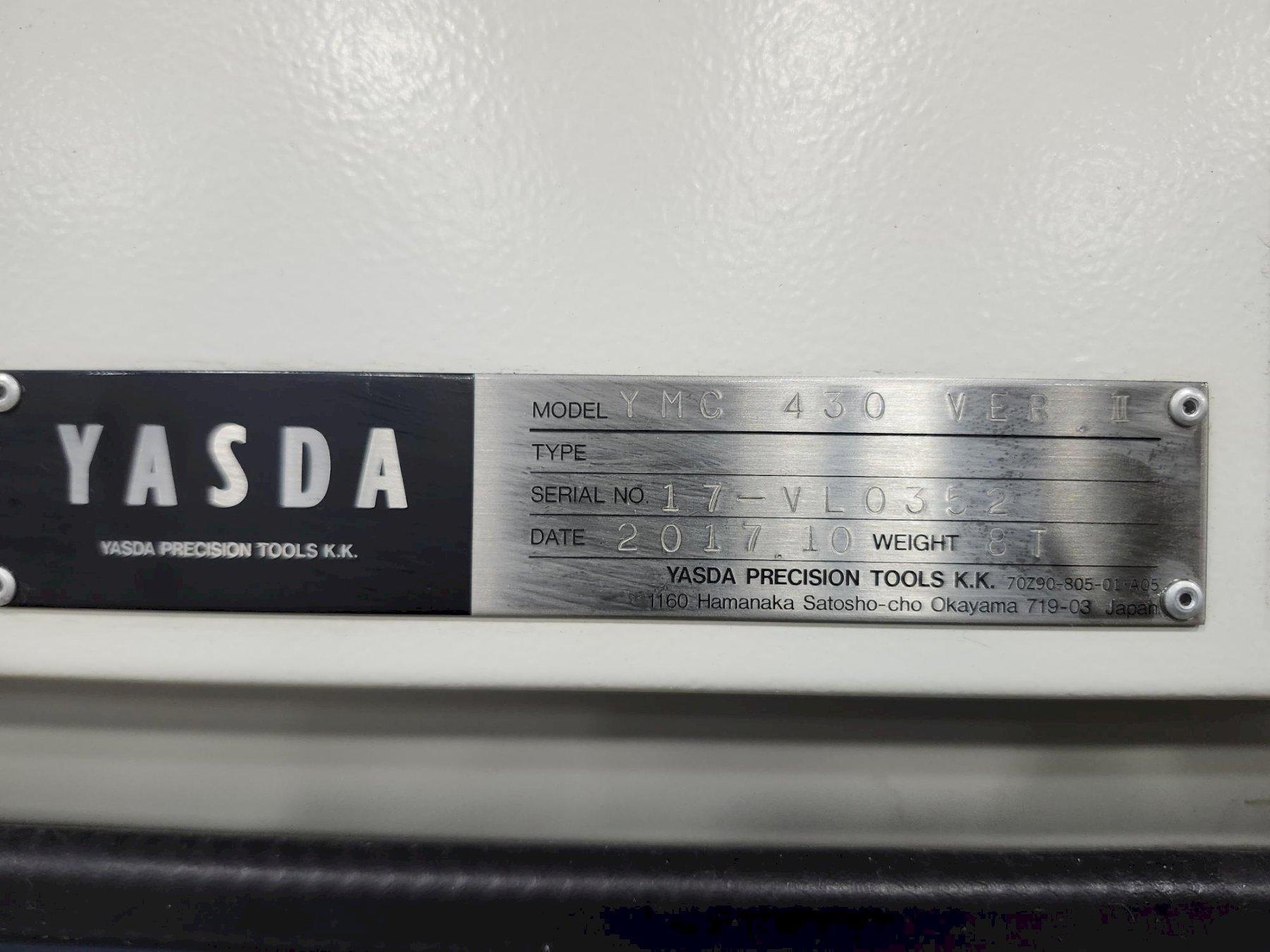

Brand
YASDA
Model
YMC 430
Type
Machining Centers, Vertical, (5-Axis or More)
Stock #
56243
Condition
Excellent
Year
2017
Highlights
40,000 RPM, Trunnion, HSK-E32, 32 Automatic Toolchanger, 10HP, Fanuc 31i-B5, Low Hours, New 2017| CNC Control | yes |
| Type of CNC Control | FANUC 31i-B５ |
| Cutting Time Hours | 10611 |
| X-axis travel | 16.5"/420mm |
| Y-axis travel | 11.8"/300mm |
| Z-axis travel | 9.8"/250mm |
| Table to spindle nose distance | 5.9" - 15.7" / 150mm - 400mm |
| Spindle taper hole | HSK-E32 |
| Spindle speed range | 200-40,000 RPMs |
| Spindle drive motor | 10 HP / 7.5 KW AC ( Continuous ) |
| Table working size | 600mm x 350mm / 26.6" x 13.7" |
| Table Loading capacity | 33 lbs. / 15 kg. |
| Rapid Feed Rate X, Y, Z | 787.4 ipm /20000 mm/min - Standard MODE |
| MAXIMUM CUTTING FEED | 393.7 ipm / 5,000mm/min |
| Min. input increment | 0.0001mm (0.01μm) |
| Optical scale feed back | X, Y, Z-axis 0.000001mm (0.001μm) command available |

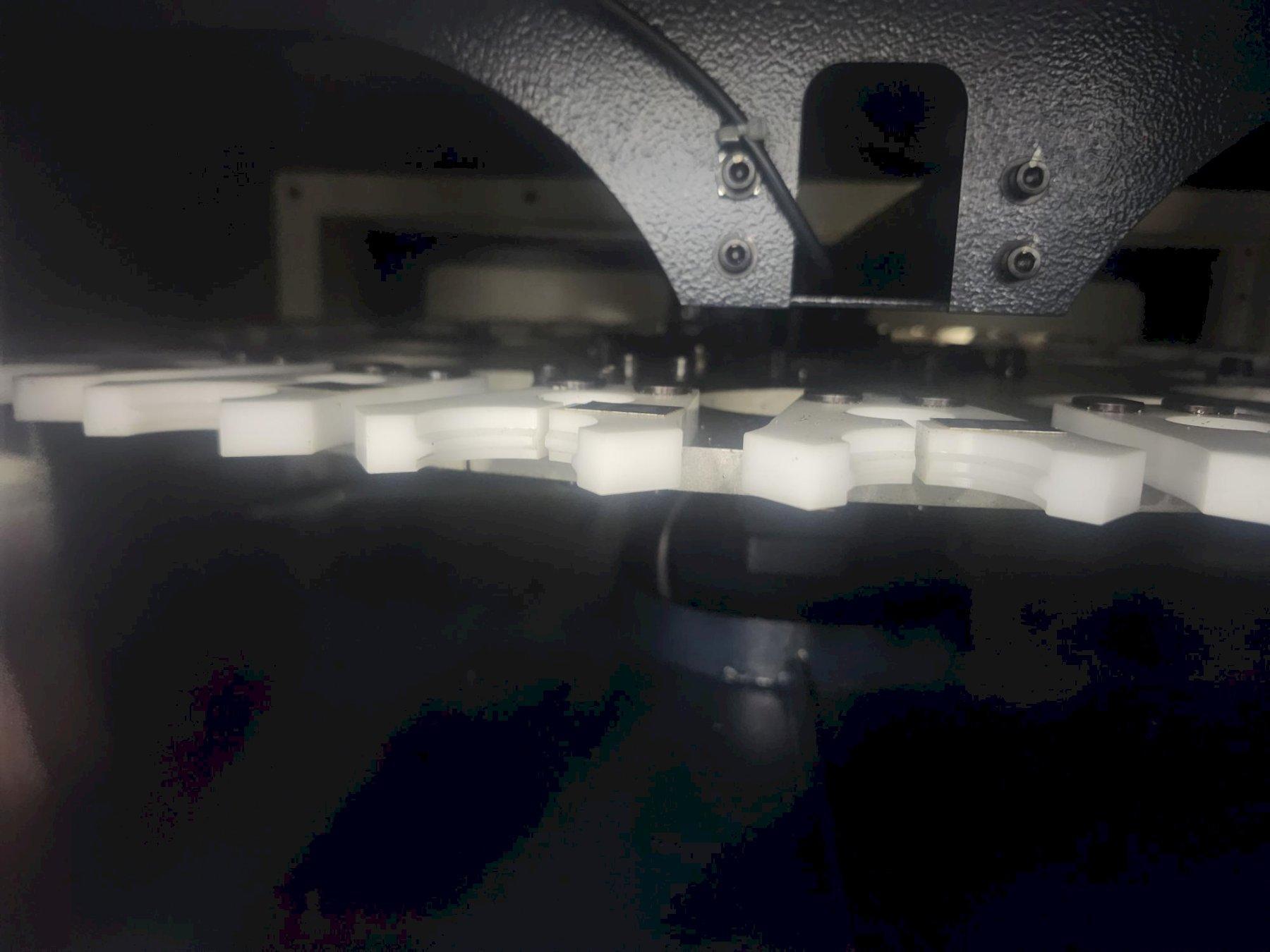

| Tool storage capacity | 32 tools |
| Max. tool dia. / length / mass | φ50mm /120mm /500g ( φ1.9"/4.7"/17.6ounces ) |
| Tool Change Method | Armless |
| Tool selection method | Random |
| Cutting Time Hours | Approxiamately: 8,000 Hours |
| Weight | 17700 pounds |
| Dimensions | Height: 2840mm / 119" Length: 2450mm / 96.5" Width: 3405mm / 135" |
| Equipped With : Fanuc 31i-B5 +HMI Control Handwheel 32 Station Automatic Toolchanger RT10 5 Axis Table - (C-Axis) 360 deg. (continuous) Table Tilting Axis Travel: (B-Axis) -10 to 100 deg. Max. Swing Diameter: 9.84" / 250mm Chucking System: 3R macro Computer Display: 15" Touch Panel Tape Memory: 512K (1280M) Program number/Program file name : O4-digit/32 characters Custom Macros: 1000 Automatic Corner Override Run Time/Part Display Extended Part Program Editing Data Server: 1 GB Helical Interpolation Program Mirror Image HAS-4 (Highly Accurrate and Speedy) Machining System High Speed Smooth TCP Minimum input increment : 0.0001mm Tool Selection System : Selection by shortcut in fixed-address system Tool balance weight : Up to G1.0 Spindle Head and XYZ Axis Cooling Device - 40L 500Lcal/HR X,Y,Z Optical Scales Spindle Bearing Lube System LED Work Light Automatic Power Off Blube MQL External Mist Coolant Tool Offsets Pairs -64 High Speed Smooth TCP Tilted Working Plane Indexing Rotation Center Calibration Function (iCAL) Yasda Compensation for Spindle Thermal Displacement Flood Coolant: 2 AA Type Nozzles Mist Collector interface Thermal Distortion Stabilizing System with Weekly Timer Splash Guard with Roof Leveling Screws DyanLine Non-contact Type Automatic Tool Measuring System Line Sensor Measuring Method Equipped Auto-Measuring System without Printer; Renishaw probe OMP 400 Linear motors Coolant system Manuals Floor space with Door open : ( 121" x 141" ) 3050mm x 3575mm |
