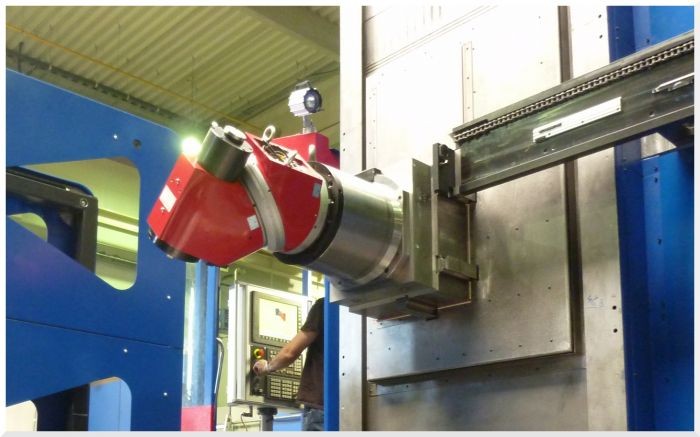

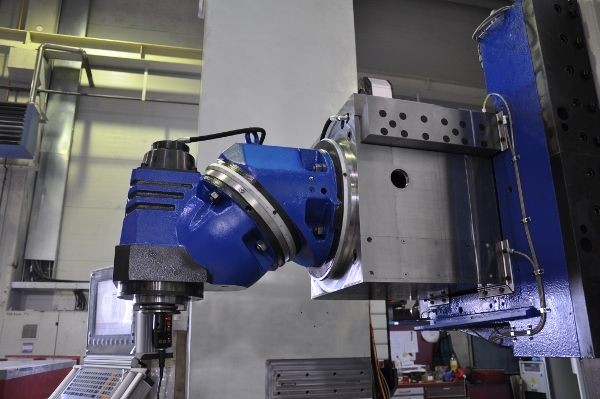

There are many different Milling Heads available for your Lucas Fermat Machine. Call us to find out about all the different options available to you.

FERMAT’s own design two of the most precise and powerful micro indexing milling heads on the market able to work inside and outside the workpiece performing an array of tasks in extremely fine detail (the precision of its automatic rotation is 0.001°) and strong enough to make light work of heavy workpieces.

Universal Automatic Micro Indexing Head – UHA mi 30

• Spindle Taper SK 50 (DIN ANSI MAS)


• Hydraulic tool unclamping


• Tool clamping force 20 kN


• Angle contact High precision bearings mounted on the tool-holder spindle trio at the forward side and couple the back side


• Ground gears


• Coolant through Spindle


• External tool cooling


• Rotary encoder at both axes


• Taper air-jet


• A axis range ± 180°

Right Angle Automatic Micro Indexing Head – PHA mi 60

• Spindle Taper SK 50 (DIN ANSI MAS)


• Hydraulic tool unclamping


• Tool clamping force 25±15% kN


• Ground gears


• Coolant through Spindle / External tool cooling


• Taper air-jet


• C axis range ± 180°


• Automatic gear greasing


• Quick head positioning


• 2 servomotors and gearboxes (Master-Slave system) for head positioning


• Cross roller bearing on C axis
