Highlights
- Superior precision and efficiency with Fanuc CNC control, enabling seamless 3-axis operation for complex machining tasks.
- Large 18-inch chuck and 31.10-inch maximum turning diameter for versatile part handling and enhanced productivity.
- Advanced live tooling capabilities with a powerful 20 HP motor, facilitating multi-tasking and reducing cycle times.
- Robust BMT-75 turret configuration featuring 12 indexing stations, allowing for a range of tooling options and quick setup changes.
- Hydraulic self-centering steady rest included, ensuring stability for long workpieces while maintaining accuracy during heavy cuts.
- Large 18-inch chuck and 31.10-inch maximum turning diameter for versatile part handling and enhanced productivity.
- Advanced live tooling capabilities with a powerful 20 HP motor, facilitating multi-tasking and reducing cycle times.
- Robust BMT-75 turret configuration featuring 12 indexing stations, allowing for a range of tooling options and quick setup changes.
- Hydraulic self-centering steady rest included, ensuring stability for long workpieces while maintaining accuracy during heavy cuts.

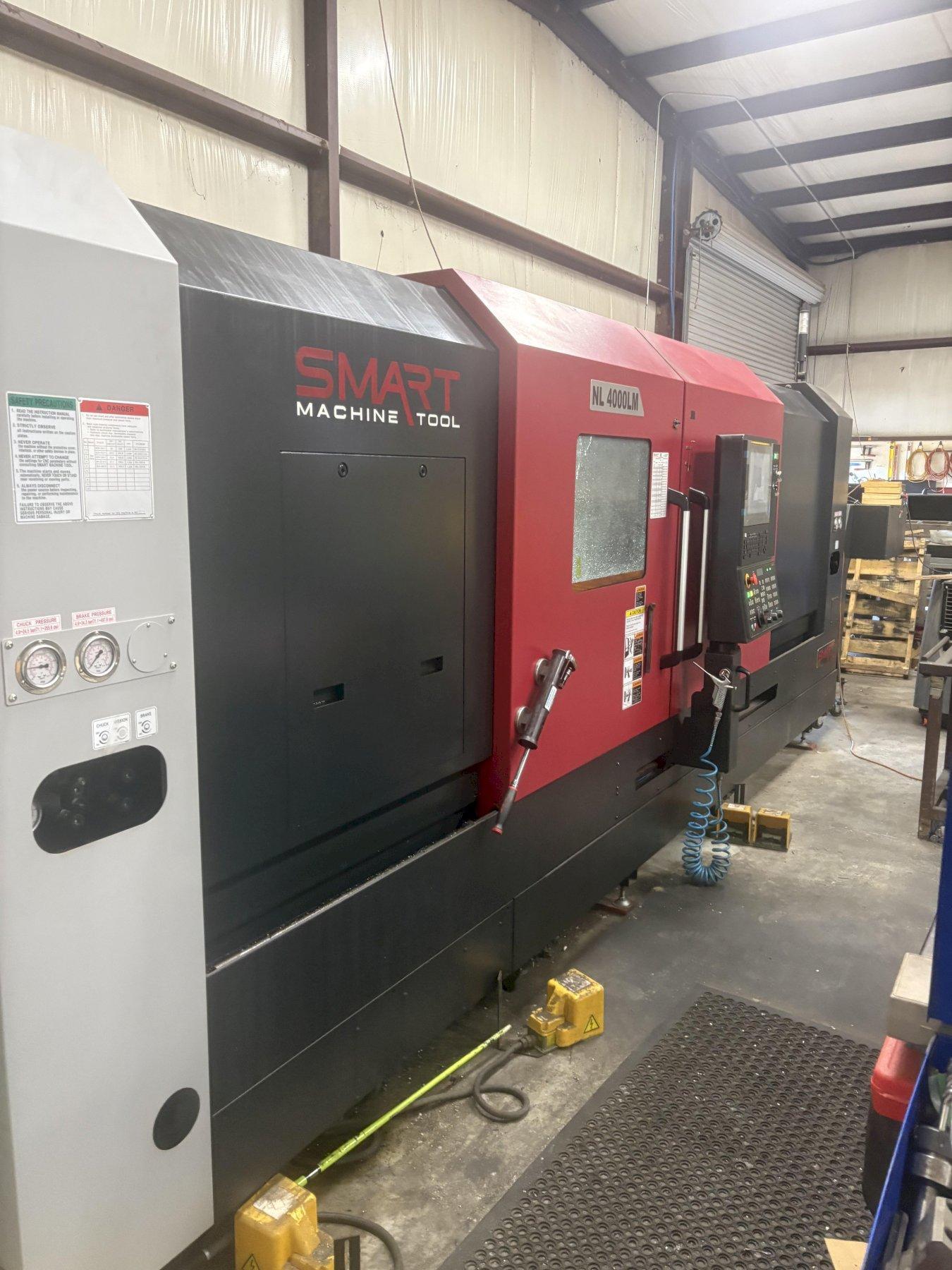

Overview
- Make
- SMART MACHINE TOOL
- Model
- NL4000LM
- Year
- 2023
- Condition
- Excellent
- Stock #
- 57783
Specifications
- CNC Control
- yes
- CNC Control
- Fanuc
- # Axis
- 3
- Chuck Size
- 18 inches
- Max. Swing over Bed
- 22.05 inches
- Max. Turning Diameter
- 31.10 inches
- Center Distance
- 84.5 inches
- Hydraulic Steady Rest
- yes
- Hydraulic Steady Rest Type

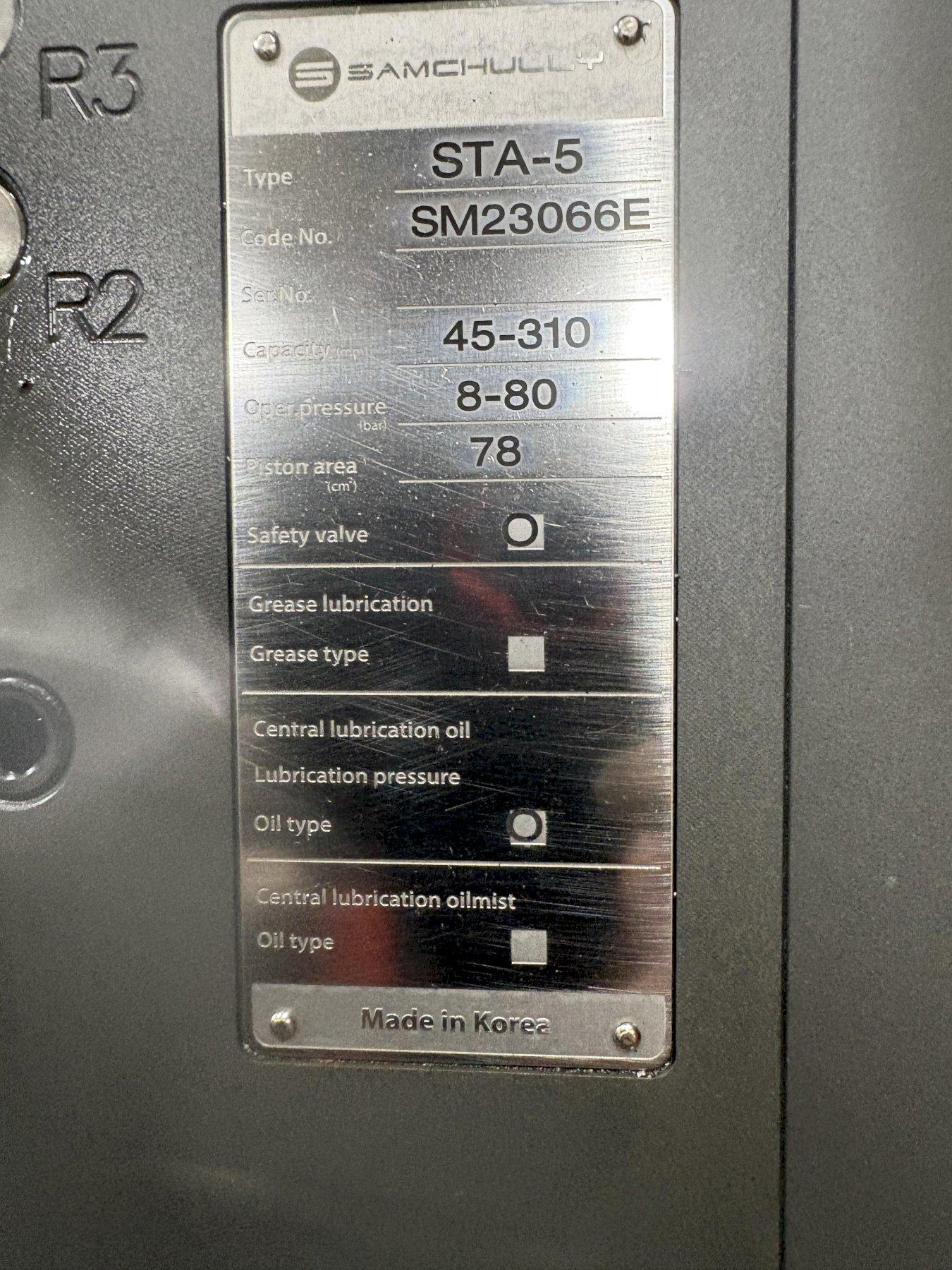

- Samchully STA-5 Hydraulic Self-Centering Steady Rest
- Bar Capacity
- 4.59 inches
- Z-Axis Travel
- 84.45"
- C1/C2 Axis Index
- With C-Axis
- Spindle Nose
- A2-11
- Spindle Speed
- 2,000 RPM
- Number of Stations on Turret
- 12 bolt-on or live tool stations
- Turret Index Time
- O.25 seconds per step
- Live Tooling
- yes
- Turret Configuration
- BMT-75 turret configuration
- Live Tooling Motor
- 20 HP live tool capability
- Tailstock
- yes
- Main Motor
- 40 / 60 hp
- Weight
- 19000 Lbs.
- Number of Positions on Turret
- 24 total indexing positions
Spec Sheet
Control: Fanuc Oi-TF- PLUS

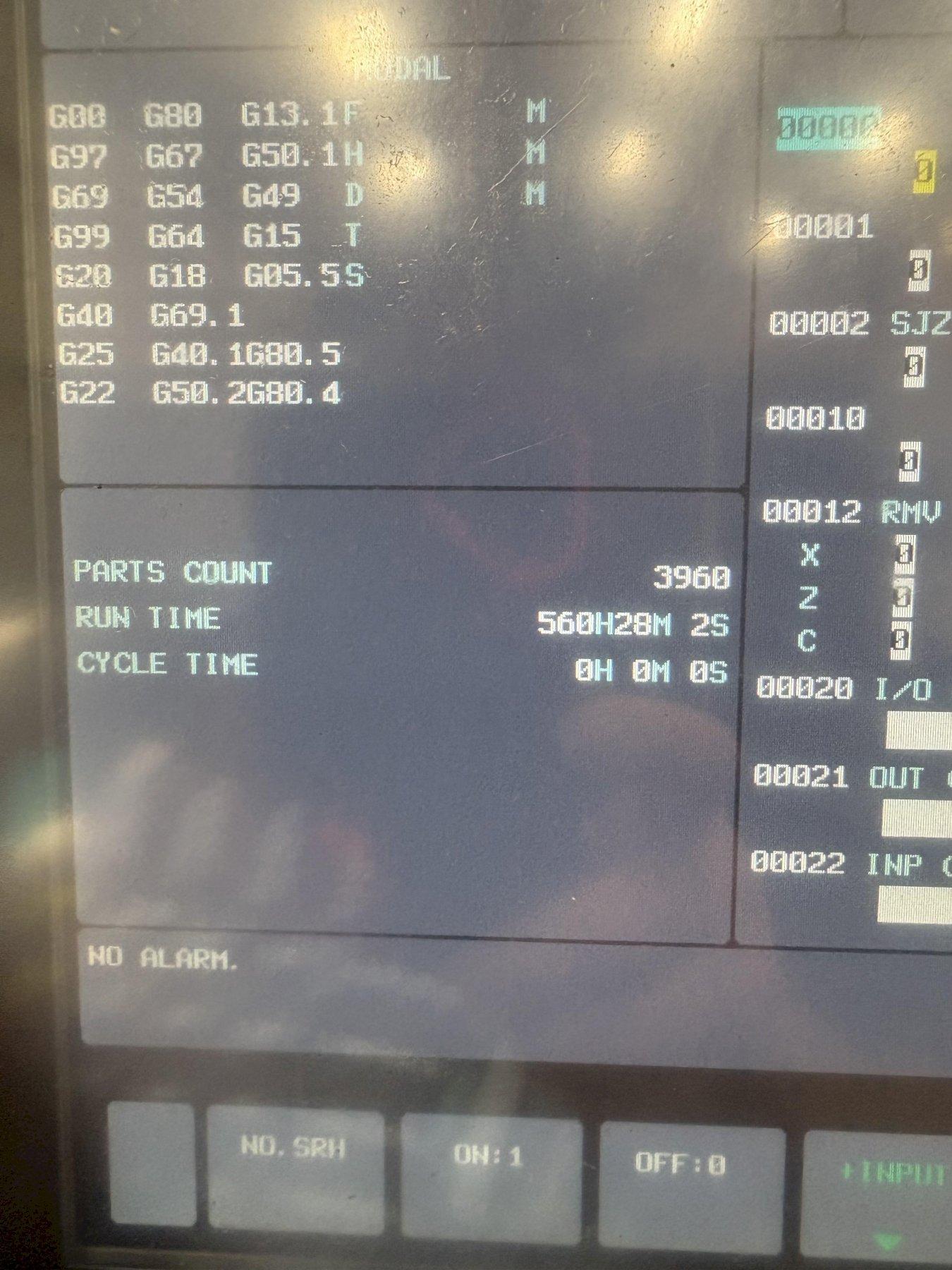

Machine Cut Hours: 560
Tool Presetter

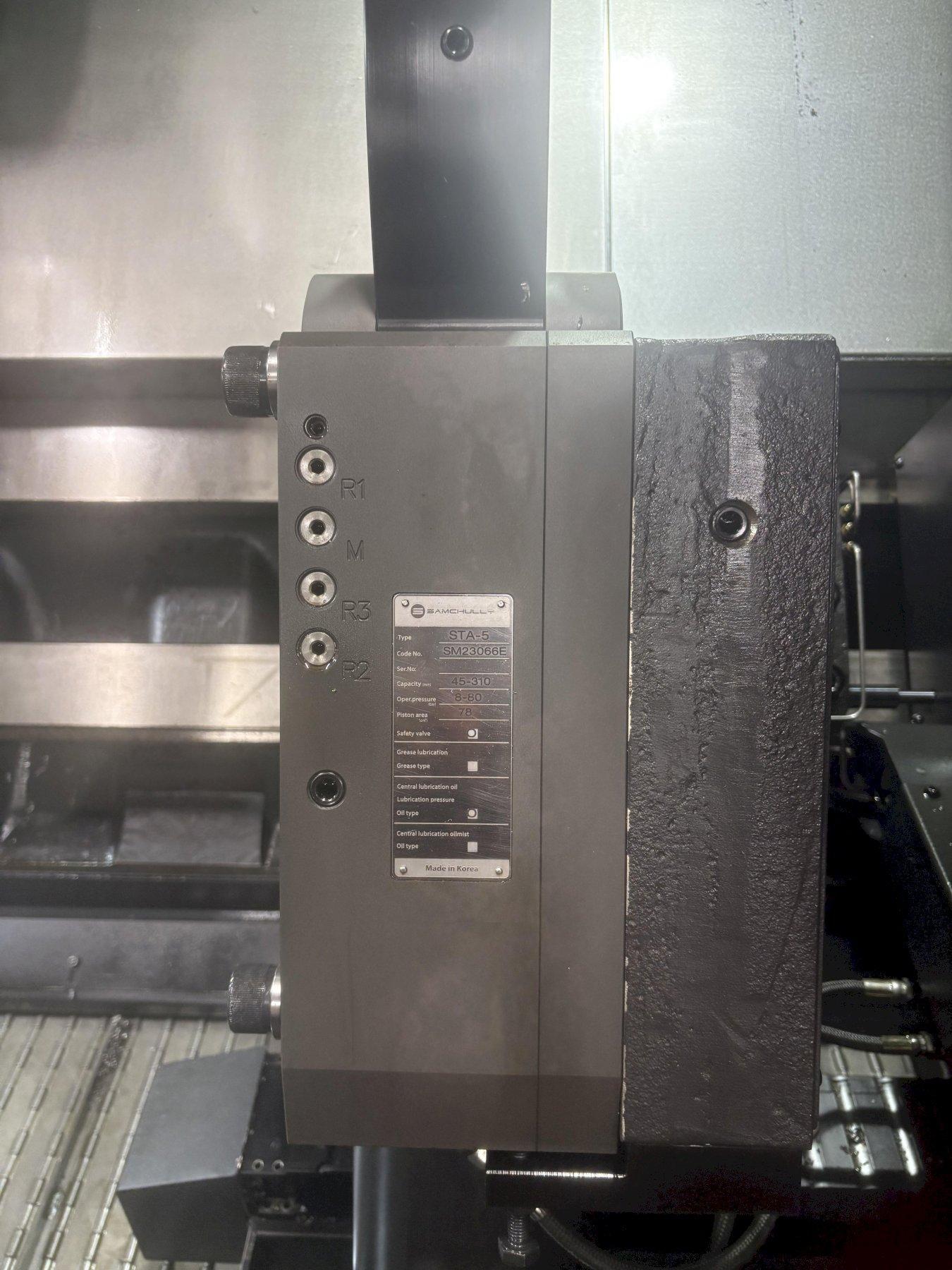

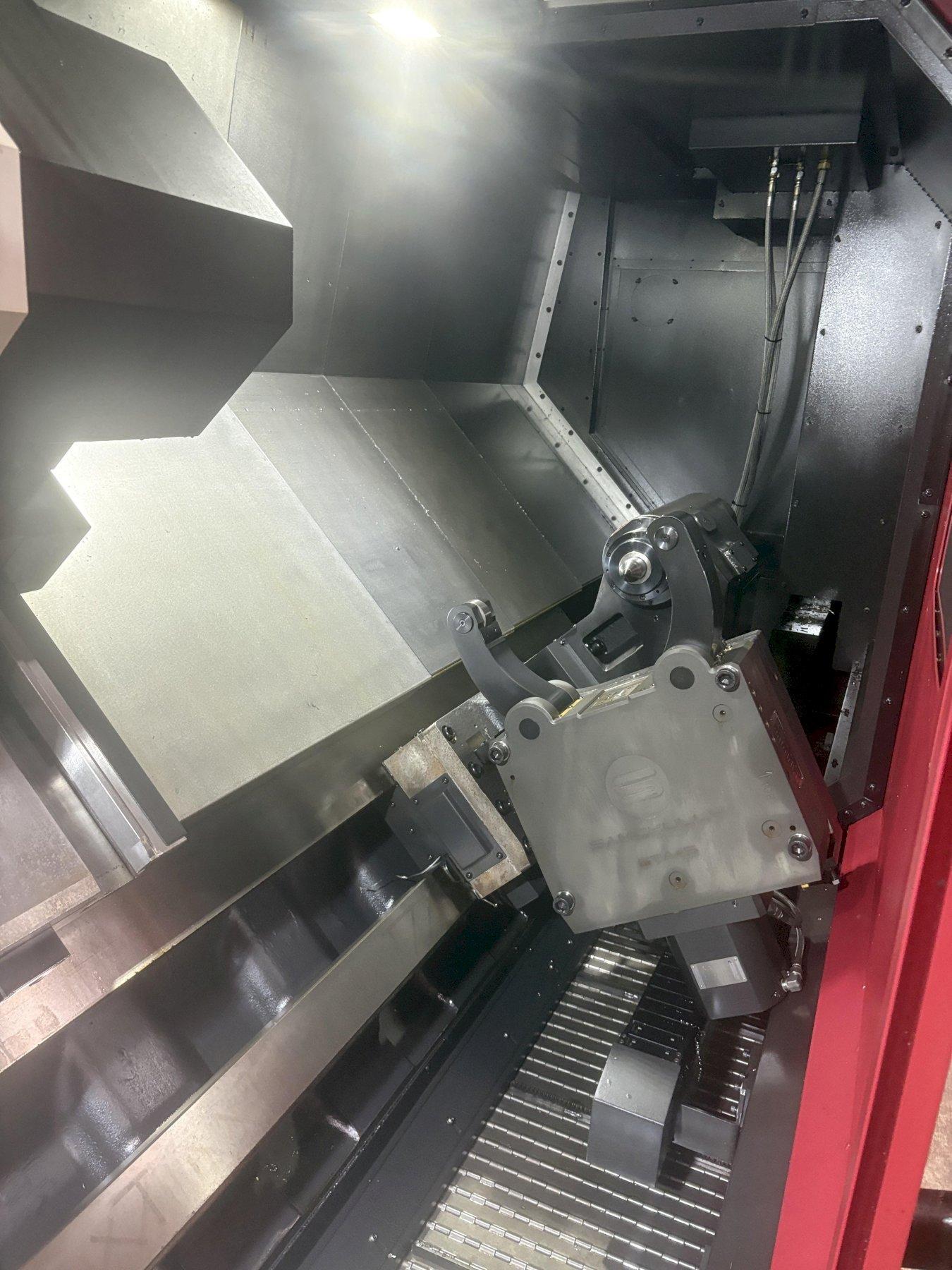

Samchully STA-5 Hydraulic Self-Centering Steady Rest

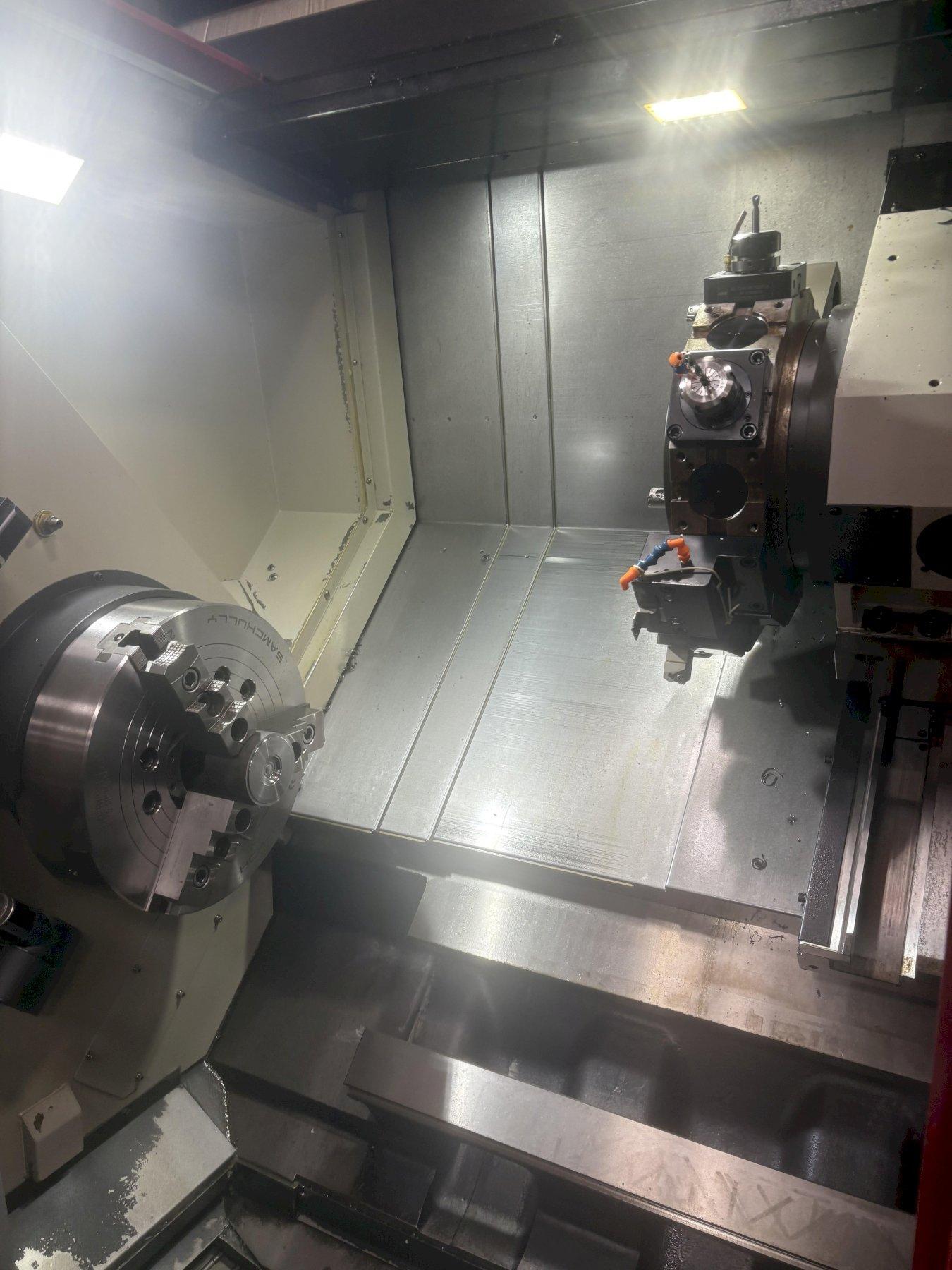

18" - 3-Jaw Chuck
Live Tooling
Tailstock

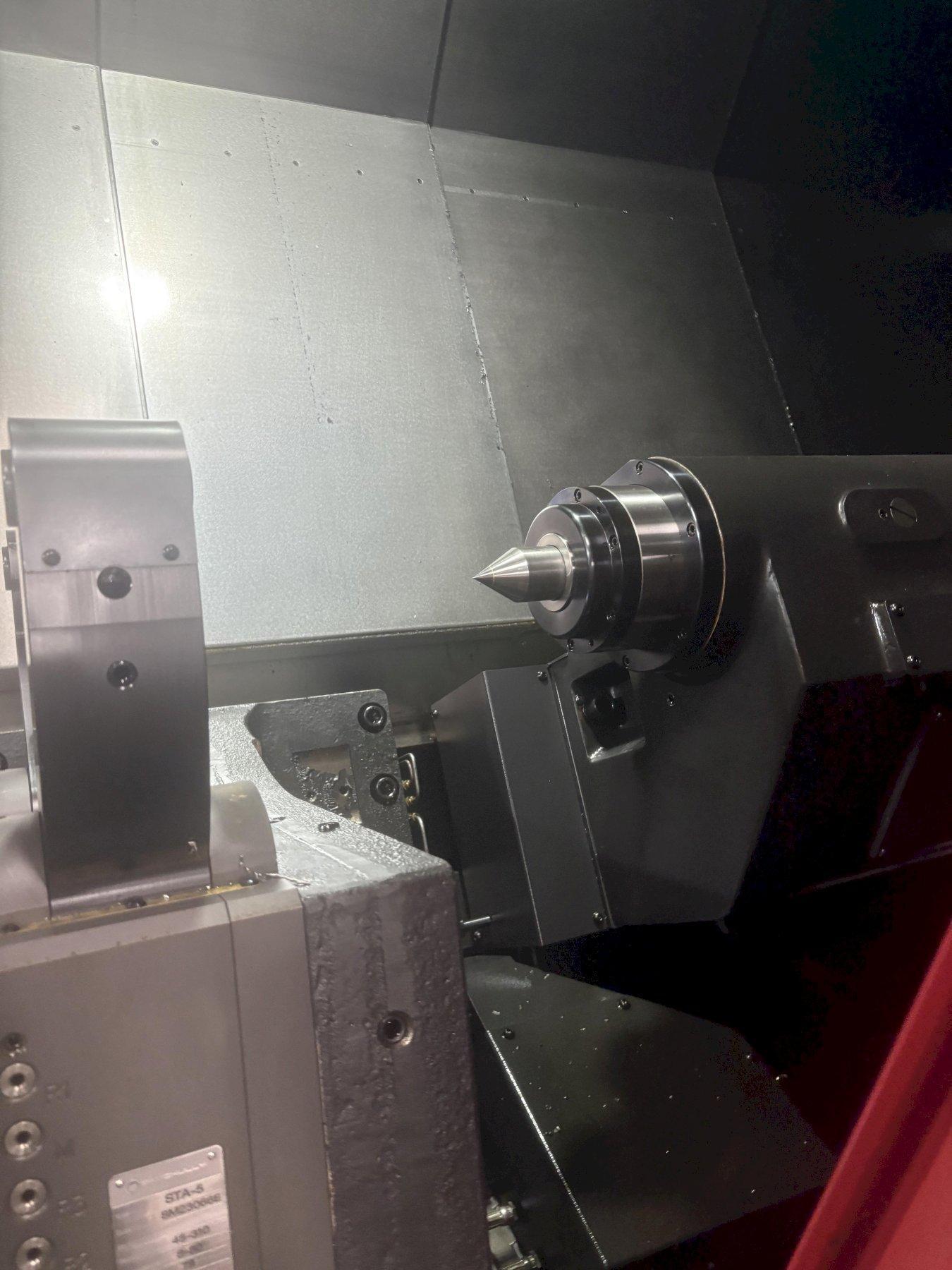

Live Center

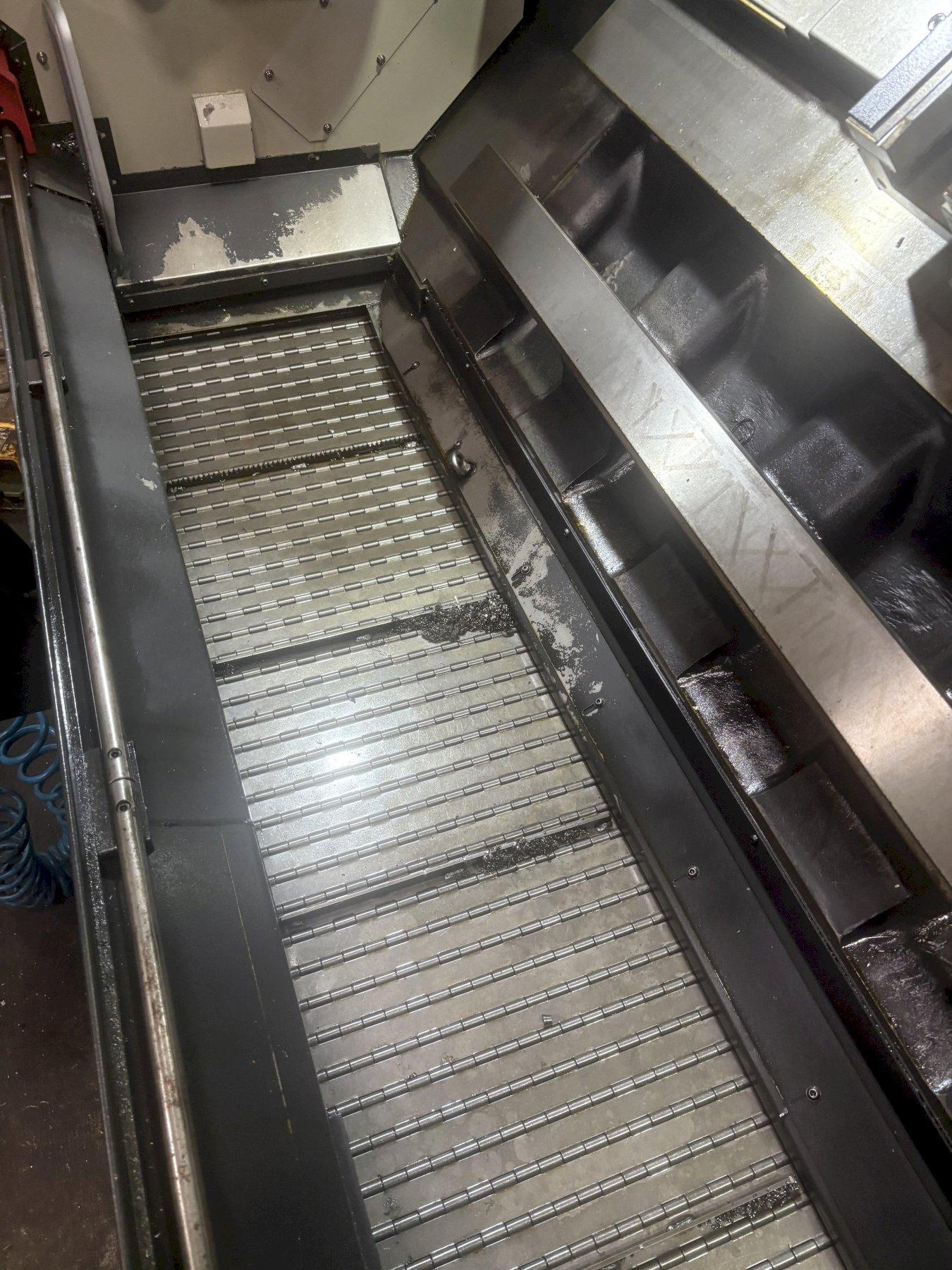

Chip Conveyor
Coolant System
Manuals
Machine Cut Hours: 560
Tool Presetter
Samchully STA-5 Hydraulic Self-Centering Steady Rest
18" - 3-Jaw Chuck
Live Tooling
Tailstock
Live Center
Chip Conveyor
Coolant System
Manuals
