Overview

Make

PARPAS

Model

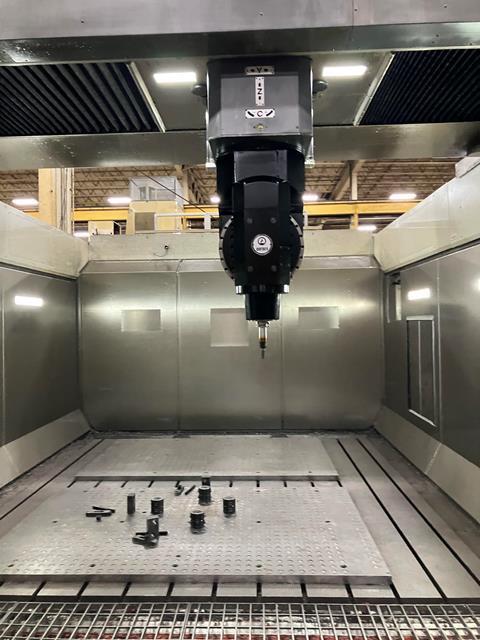

Diamond Linear 30 5 Axis Gantry

Type

Machining Centers, Gantry (incld. Bridge & Double Column)

Year

2014

Condition

Very Good

Stock #

57792

Specifications

Number of Axes

5

CNC Control

yes

Type of CNC Control

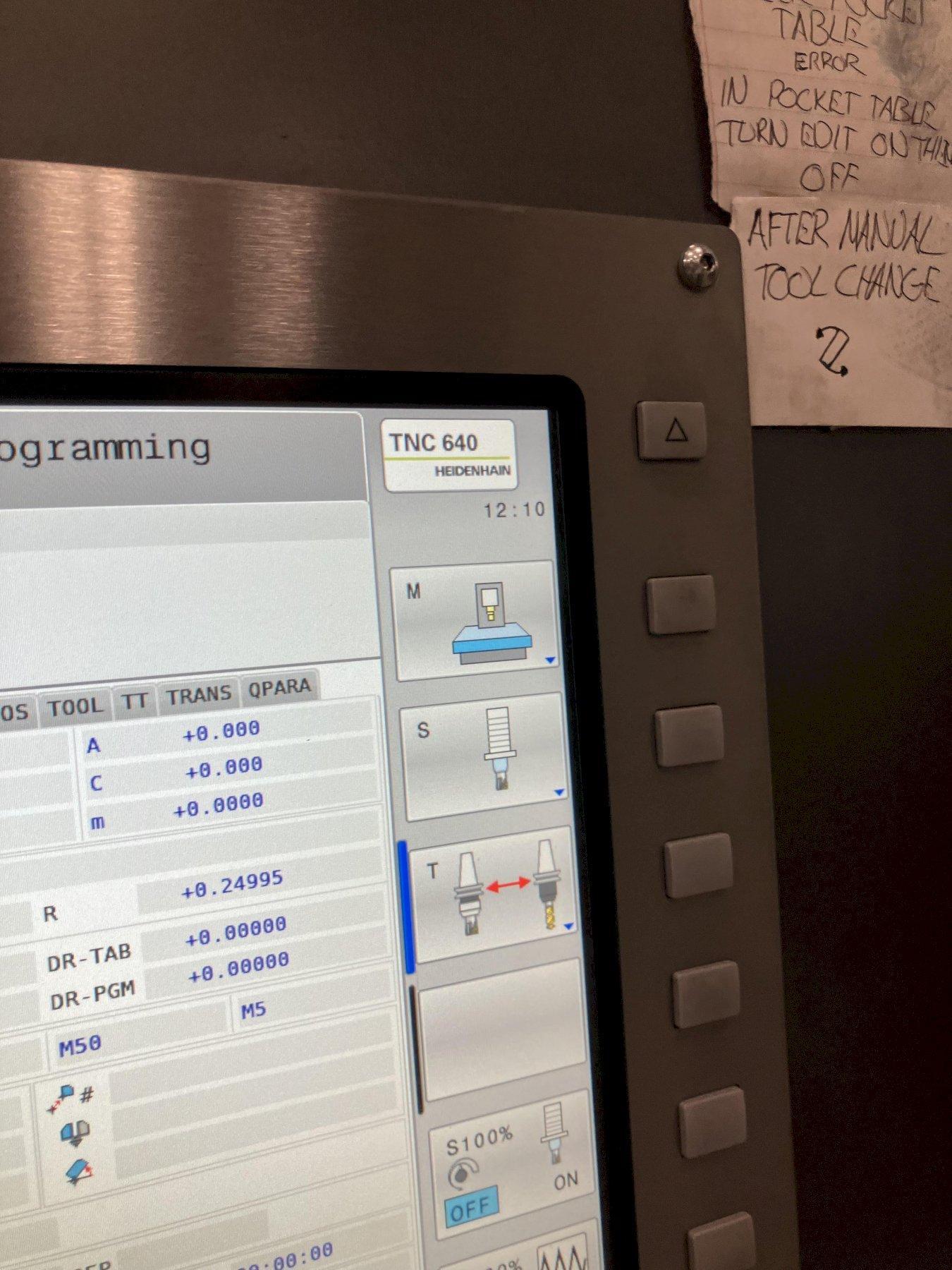

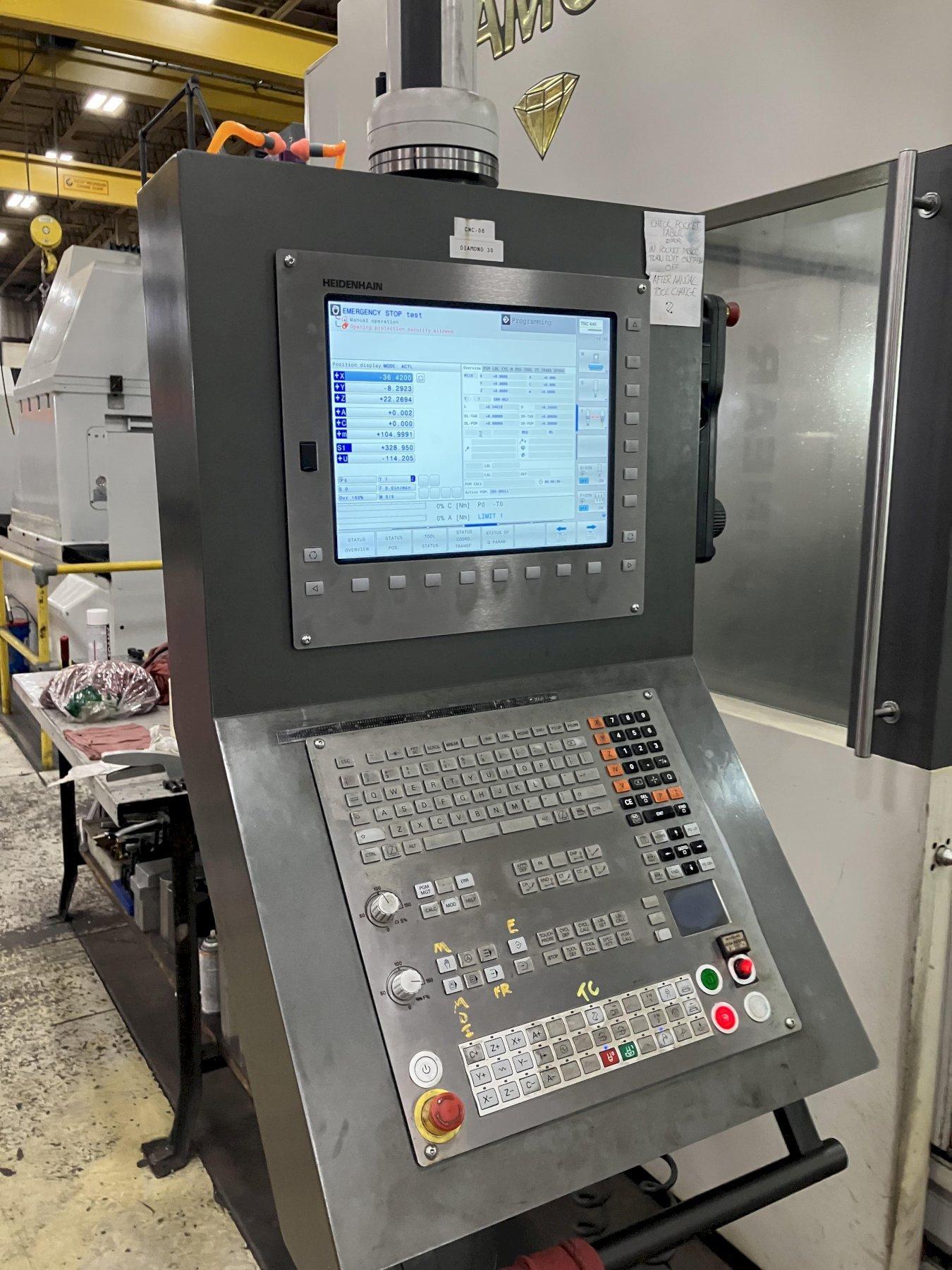

Heidenhain TNC 640 HSCI CNC Control

Table Size

122.04" x 110.23"

Effective Width Between Colums

102.36”

X

118.11 inches

Y

102.36 inches

Z

55.11 inches

Axis A

Head Sweep +/- 110 Degrees

C-Axis, Ram Rotation

.001 Degrees

C-Axis, Ram Range

+/- 370 Degree

Spindle Speed RPM

20000

Taper

HSK-63-A

Automatic Tool Changer - Positions

24 Station Automatic Tool Changer

Continuous Orthogonal Head

5-Axis Continuous Orthogonal Head

Rapid Feeds

236.232"

Power

52 horsepower

Dimensions

296.4" x 259.84" x 226.9"

Machine Height

226.9"
