Highlights

- High-speed performance with a spindle speed of 15,000 RPM for efficient machining and reduced cycle times.
- Spacious 52" x 18" table with a robust capacity of 1,750 pounds, accommodating a wide range of workpieces.
- Advanced Haas CNC control ensures precision and ease of use, streamlining programming and operation.
- Impressive rapid traverse rates of 1,400 IPM on all axes, enhancing productivity and throughput.
- Equipped with a 30-tool automatic changer, maximizing uptime and enabling quick job changes for increased efficiency.

Overview

Make
HAAS
Model
VF4SS
Type
Machining Centers, Vertical
Year
2023
Condition
Excellent
Stock #
57784

Specifications

CNC Control
yes
Type of CNC Control
Haas Control
# Axis
3
High Speed Feature
15000 RPM High Speed Machining
Table Size
52" × 18"
Table Capacity
1750 pounds
X-Axis Travel
50 inches
Y-Axis Travel
20 inches
Z-Axis Travel
25 inches
Spindle Speed
15,000 RPM inline direct-drive
Spindle Taper
CAT 40 taper
Tool Changer Capacity
30
X-Axis Feedrate
Max Cutting Feedrate: 833 IPM
Y-Axis Feedrate
Max Cutting Feedrate: 833 IPM
Z-Axis Feedrate
Max Cutting Feedrate: 833 IPM
X-Axis Rapid Traverse Rate
1,400 inches per minute (IPM)
Y-Axis Rapid Traverse Rate
1,400 inches per minute (IPM)
Z-Axis Rapid Traverse Rate
1,400 inches per minute (IPM)
Coolant Thru Spindle
yes
Main Motor
30 hp vector drive vector motor

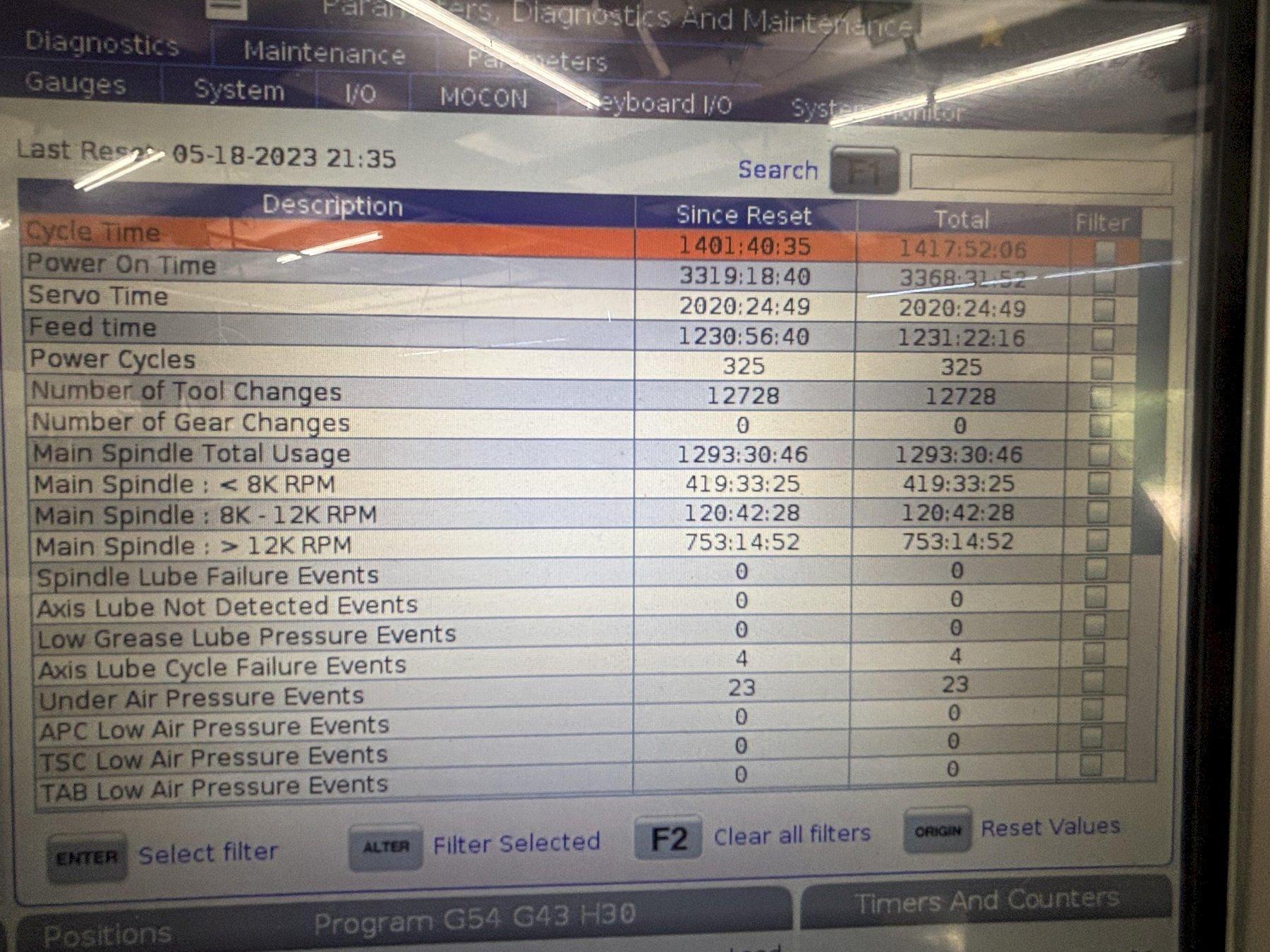

Machine Hours
1401
Floor Space
152 in x 99 in x 106 in
Weight
11720 pounds

Spec Sheet

Haas CNC Control
Touch Screen Interface for the Haas Control
High-Speed Machining
Rigid Tapping
Through-Spindle Coolant, 1000psi
Wireless Intuitive Probing System
Chip Auger
Programmable Coolant Nozzle
Chip Tray
55-Gallon Coolant Tank with ¼ hp Pump
Ethernet Interface and Wifi Connection for the Haas Control
1GB of Onboard Memory for Program Storage and Backup
 HaasConnect: Remote Monitoring
HaasDrop Wireless File Transfer
Media Display M-Code
Haas Window Blast

Request a Quote
